Capping solutions with servo control torque feedback for capping tool while handling screw & CRC caps.

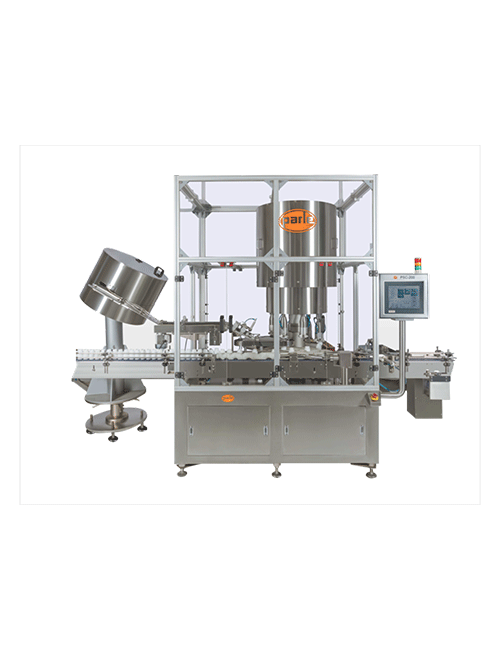

CP 200
8 Head Capping
Key Features:
- Servo control torque feedback for capping tool while handling screw & CRC caps
- Option: Elevation type cap loader
Output:
|
Output |
180 to 200 BPM |
|
Cap Types |
CRC | Screw | Press-On |
|
Bottle Diameter |
25 to 85 mm |
|
Bottle Height |
50 to 175 mm |
|
Cap Outer Diameter |
30 to 50 mm |
|
Cap Height |
10 mm to 18 mm |
Available Models: CP 100 | CP 100S

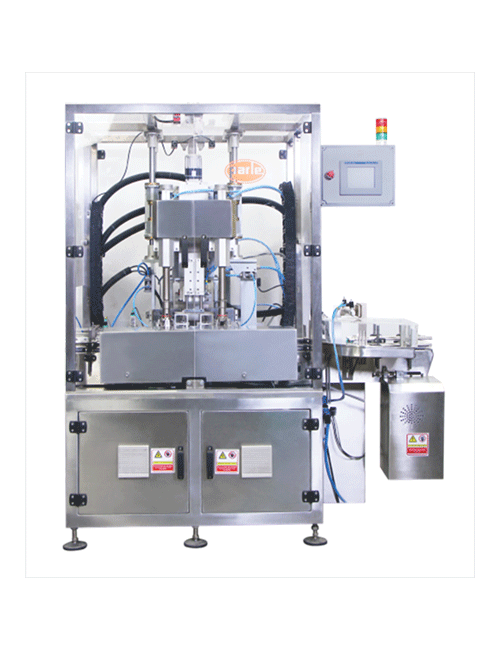

CP 60C
Press/Screw Cap Combo Capping
Key Features:
- Cap feeder arrangement for smooth flow on conveyor till pre tightening station
- Pre tightening tool arrangements for cap placement over containers
Output:
|
Output |
60 BPM |
|
Cap Types |
CRC | Screw | Press-On |
|
Bottle Diameter |
25 to 85 mm |
|
Bottle Height |
50 to 175 mm |
|
Cap Outer Diameter |
30 to 50 mm |
|
Cap Height |
10 mm to 18 mm |

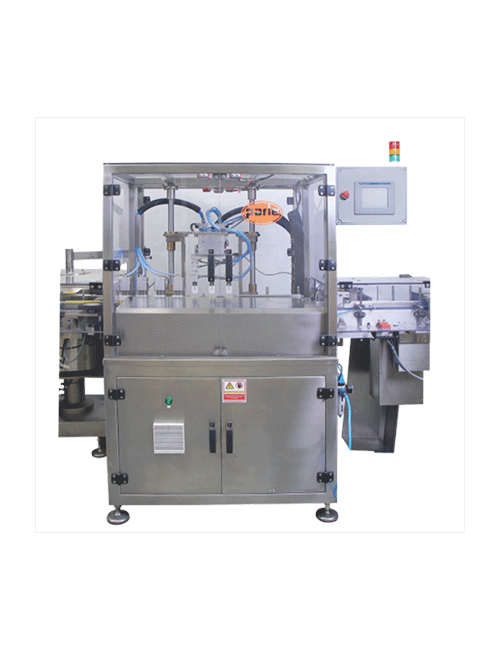

CP 60P
Press-On Capping
Key Features:
- Servo control torque feedback for capping tool while handling Screw/CRC caps
- Cap feeder arrangement for smooth flow on conveyor
Output:
|
Output |
60 BPM |
|
Cap Types |
Press-On |
|
Bottle Diameter |
25 to 85 mm |
|
Bottle Height |
50 to 175 mm |
|
Cap Outer Diameter |
30 to 50 mm |
|
Cap Height |
10 mm to 18 mm |

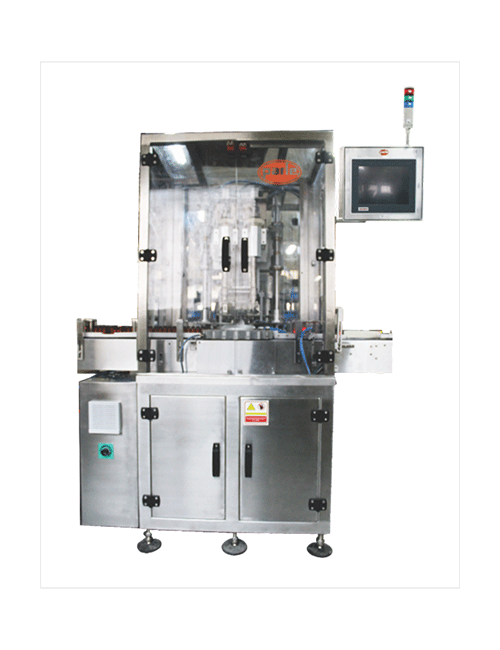

CP 60M
Pre-Threaded Metal Caps Capping
Key Features:
- Suitable for HDPE/Glass Bottles with screw threading
- Servo control torque feedback for capping tool for pre threaded metal screw caps
Output:
|
Output |
60 BPM |
|
Cap Types |
Pre-threaded Screw Caps – low height |
|
Bottle Diameter |
25 to 85 mm |
|
Bottle Height |
50 to 175 mm |

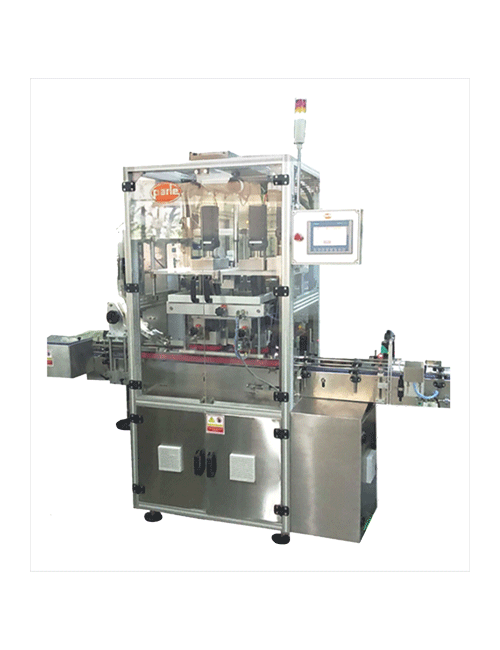

CP 100i
Inline Capping
Key Features:
- Pre-Capping by belt
- Final capping with torque measurement & rejection
Output:
|
Output |
100 ~ 120 (for 30cc bottles) |
|
Cap Types |
CRC & Screw Caps |
|
Bottle Diameter |
25 to 85 mm |
|
Bottle Height |
50 to 175 mm |
