Founded in 1924, HATA has over 90 years of experience in powder molding technology and is globally recognized as a leader in tablet press innovation. Renowned as “The HATA of Tablet Presses,” we are committed to developing high-performance, high-quality machines that meet the evolving needs of the pharmaceutical industry. With a focus on continuous innovation and customer satisfaction, we aim to shape the future of tablet press technology—past, present, and future.

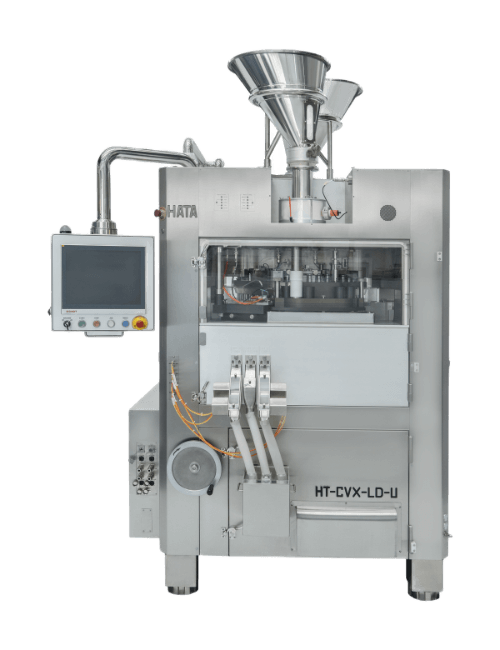

HATA CVX LD U
Interchangeable Turret (Double Rotary)
Key Features:
- Quick Turret Changeover
- Drive System with Air Cooling
- Two Stage Sealed Force Feeder
Output:
| No. of Stations and Tooling | 45 D | 55 B | 65 BB |
| Output/hr (Single Layer) | 432,000 | 528,000 | 624,000 |
| Output/hr (Bi-Layer) | 108,000 | 132,000 | 156,000 |
| Pre Compression Force | 8 Ton/80 kN | ||
| Main Compression Force | 8 Ton/80 kN | ||

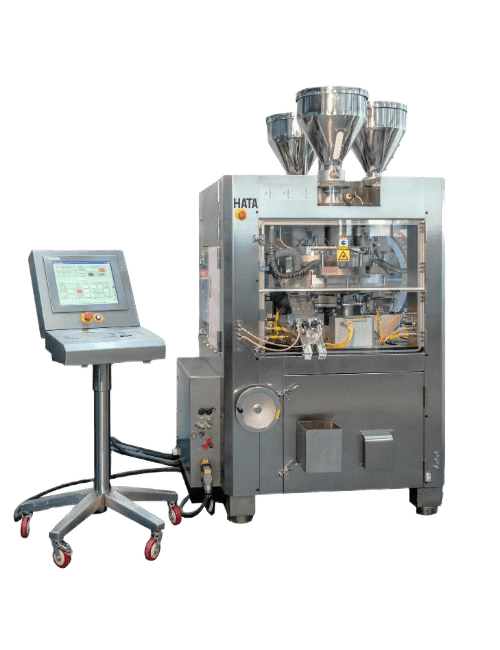

HATA CVX LS U
Tri-Layer/Tablet-in-Tablet
Key Features:
- Patented Core Feeder Process
- Core Tablets are fed from a Vibratory Bowl
- Cam lifts Pin and Tablet through Centre Core Holder
Output:
|
No. of Stations and Tooling |
45 D |
55 BB |
71 BB |
|
Output/hr (Tri-Layer) |
108,000 |
132,000 |
170,400 |
|
Pre Compression Force |
8 Ton/80 kN |
||
| Main Compression Force |
8 Ton/80 kN |
||

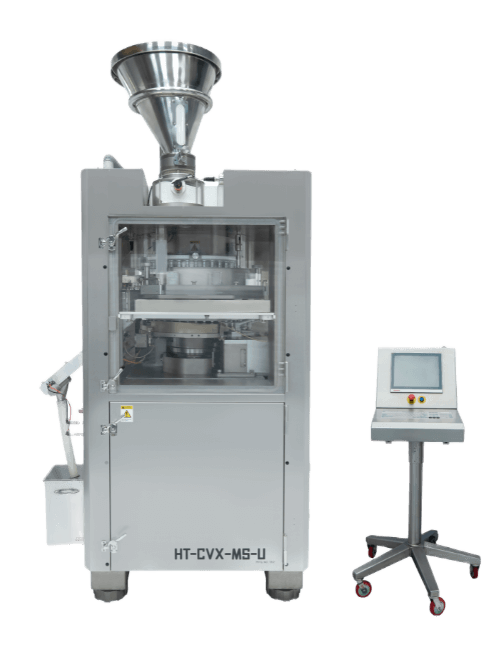

HATA CVX MS U
Production Scale (Single Rotary)
Key Features:
- Two Stage Sealed Force Feeder
- Simple Operation
- Easy Cleaning and Maintenance
Output:
|
No. of Stations and Tooling |
32 D |
38 B |
45 BB |
|
Output/hr |
192,000 |
228,000 |
270,000 |
|
Pre Compression Force |
8 Ton/80 kN |
||
|
Main Compression Force |
8 Ton/80 kN |
||

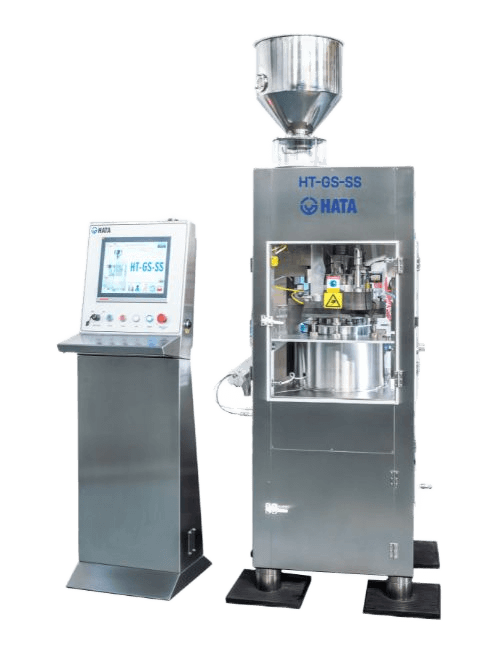

HATA GS-SS
Pilot Scale (Single Rotary)
Key Features:
- Two Stage Sealed Force Feeder
- Simple Operation
- Easy Cleaning and Maintenance
Output:
|
No. of Stations and Tooling |
15 D |
18 B |
22 BB |
|
Output/hr |
63,000 |
75,000 |
92,400 |
|
Pre Compression Force |
5 Ton/49 kN |
||
|
Main Compression Force |
5 Ton/49 kN |
||
