FREUND – Roll Compaction Processors

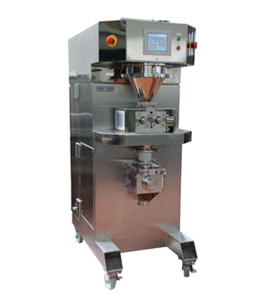

Compaction can be determined with a minimum of 100g of powder. Excellent scalability allows for quick replacement of rolls and screws and instant testing. The MINI Roller Compactor is equipped with deaerating feed screw, compacting molding rolls, pressure system, control system and container which are all washable

Features:

• Binder not required for Granulation, Suitable for granulating moisture sensitive powder, Simple & energy efficient

Capacity:

• 100 g to 10 kg/ hr

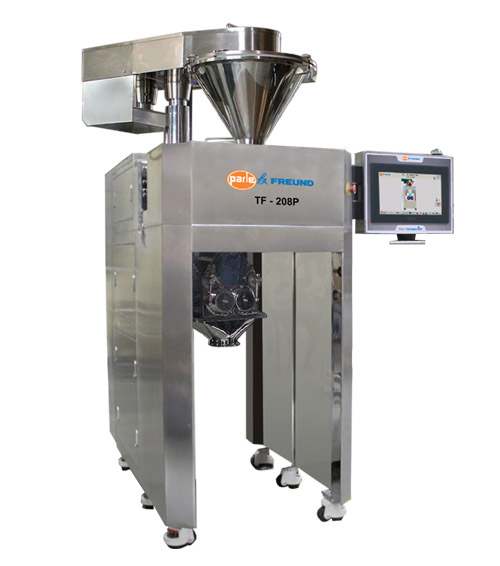

The TF-208P is a self-contained, easily operated roll compaction system built for dry granulation processes. Designed to handle upto 200 kg per hour, the machine is suitable for medium and high production scale. With the vertical hopper and screw design, product is de-aerated prior to the compaction zone providing improved processing results. The engineered seals around the compaction zone greatly reduce unwanted fines. Designed as a portable system, the TF-208P is an ideal solution for any type of dry granulation process.

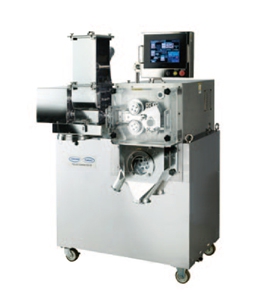

Suitable for medium to commercial scale production batch

• Optimal for granulating raw materials which are unstable in water or solvent, and are vulnerable to heat deformation
• A series of compacting and granulating raw material powders directly helps simplify production process, eliminating the moistening and drying processes which are usually required in other granulation methods
• Roll-compacting creates high-density granules
• Pilot pressure created by compacting-molding helps produce tablets of uniform weight and good formation free from capping.

Capacity:

• 300 kg/ hr

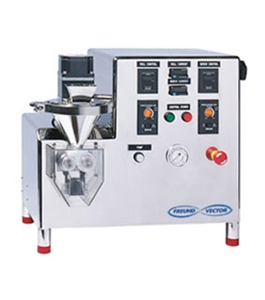

Suitable for Pilot batch with both high functionality, high cleaning & handling performance

Features:

• Cantilevered Roll design with basic features of a Hopper, horizontal feed screw system, deaeration unit & vertically arranged rolls. GMP Compliant features
• Drive system is separated from product contact parts to prevent possible contamination

Capacity:

• 60kg/ hr
